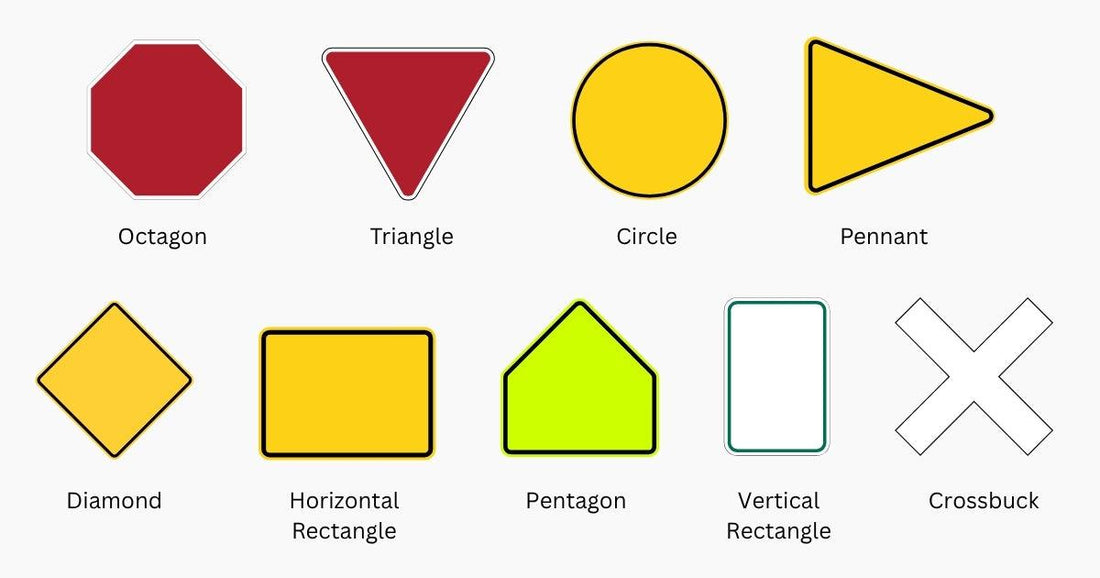

Road Sign Shapes: The 9 Standard MUTCD Shapes

The eight-sided octagon is reserved exclusively for the Stop sign. Its distinctive shape stays recognizable from any angle, even when the face is obscured by dirt, snow, or low light, a fail-safe built into the geometry itself.

Standard MUTCD sizes are 30" for conventional roads and 36" for expressways and freeways. A 48" oversized version is used on multi-lane, high-speed approaches. The 18" minimum is reserved for low-volume rural roads and shared-use paths.

Used exclusively for the Yield sign, mounted with one point down. The point-down orientation distinguishes it from warning triangles used in other countries, where a point-up triangle typically means caution.

Standard MUTCD sizes are 36" on each side for single-lane conventional roads and 48" for multi-lane roads, expressways, and freeways. A 30" minimum size is permitted on low-volume rural roads.

Reserved for the Railroad Advance Warning sign, which alerts drivers to a railroad grade crossing ahead. The round shape is easy to recognize at distance and from oblique angles, which matters for a hazard that demands early reaction.

Standard size is 36" diameter for most roadway applications.

A horizontal isosceles triangle with the point oriented to the right, used exclusively for the No Passing Zone sign. Mounted on the left side of the roadway to mark the start of a no-passing zone, reinforcing the yellow centerline markings it accompanies.

Standard MUTCD size is 36" x 48" for most roadway applications, with a 48" x 60" oversized version available for higher-speed multi-lane roads.

The general warning shape, rotated 45 degrees. Yellow is used for permanent hazards like curves, intersections, merges, animal crossings, and pedestrian crossings. Fluorescent orange is used for temporary construction and work zones.

The W-series covers dozens of specific warning messages on this one shape. Sizes vary by sign and road class, with most diamonds ranging from 30" for conventional roads to 48" for expressways and freeways.

Point-up pentagon in fluorescent yellow-green marks school zones, school crossings, and school advance warnings. The color is distinct from both warning yellow and construction orange, which boosts recognition in the specific context of children near roadways.

Common applications include S1-1 (School Advance), S2-1 (School Crossing), and school speed limit signs. The same pentagon shape, in blue with white text, is also used for county route markers (M1-6).

The default regulatory shape: taller than wide, white background with black legend. It covers speed limits, no parking, one way, turn restrictions, and most other driver instruction signs.

The R-series includes hundreds of variations within this one shape, including right-of-way, speed limit, movement, exclusionary, and parking signs.

Wider than tall, used for guide signs that show destinations, distances, exit information, and general directional messaging. Green is used for standard guide signs, blue for motorist services like rest areas and hospitals, and brown for recreational or cultural sites.

It is also the shape used for most parking signs mounted with directional arrows, street name signs, and larger directional panels.

Two white reflective blades crossed at 45 degrees, mounted at every public railroad grade crossing. Under the MUTCD it functions as a regulatory yield sign, so drivers are legally required to yield to approaching trains when a crossbuck is present.

It is typically paired with a number-of-tracks plaque (R15-2) and, at active crossings, flashing light signals.
