Road sign shapes tell drivers what kind of message is coming before they can read it: an octagon means stop, a triangle means yield, a diamond warns, a pentagon marks a school, and a rectangle carries a rule or direction. Our shape categories let you browse by that code, whether you are matching a damaged sign or planning a full intersection.
What Road Sign Shapes Mean
The Manual on Uniform Traffic Control Devices assigns a shape to each kind of message so a driver can recognize the sign from far away, at night, or when snow covers the face. The octagon is used for one sign only, Stop. The downward triangle is used only for Yield. The diamond is reserved for warnings. The pentagon with its point up marks a school area. The circle warns of a railroad crossing ahead, the crossbuck marks the crossing itself, and the sideways pennant means No Passing. Everything else, from Speed Limit to street names, uses a square or rectangle, and the color and legend carry the meaning.
Browsing by shape is the fastest way to match a damaged sign when you do not know its code, to compare every sign that fits one post and bracket, or to build a full approach where the shapes repeat in a known order: warning diamond, then regulatory rectangle, then the octagon at the line.
Road Sign Shapes at a Glance
Scroll sideways to view the full table on smaller screens.
| Shape | What it tells the driver | Signs that use it | MUTCD codes | Where to find them |
|---|---|---|---|---|
| Octagon | Come to a full stop | Stop, All Way plaque below it | R1-1, R1-3 | Stop Signs, Custom Stop Signs |
| Triangle, point down | Yield to crossing traffic | Yield | R1-2 | Yield Signs |
| Diamond | A condition ahead, permanent in yellow or temporary in orange | Curve, intersection, crossing, Road Work Ahead, Lane Closed | W1 to W24 series | Diamond Road Signs, Road Warning Signs, Construction Signs |
| Pentagon, point up | School area or crossing | School Crossing, School advance warning | S1-1 | School Signs |
| Circle | Railroad crossing ahead | Railroad Advance Warning | W10-1 | Railroad Crossing Signs |
| Crossbuck | You are at the tracks | Railroad Crossing crossbuck | R15-1 | Railroad Crossing Signs |
| Pennant, point right | No passing zone begins | No Passing Zone | W14-3 | Road Warning Signs |
| Square | A prohibition, lane rule, or plaque | No Left Turn, Do Not Enter, Lane Must Turn, advisory speed plaque | R3, R5, R1-5, W13-1P | Square Road Signs |

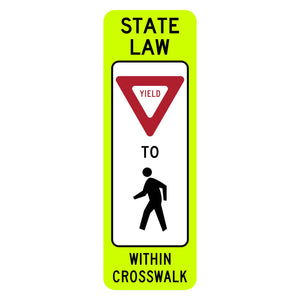

| Rectangle, vertical | A regulation | Speed Limit, One Way, No Parking, Do Not Pass | R2, R6, R7, R8, R4 | Rectangular Road Signs |

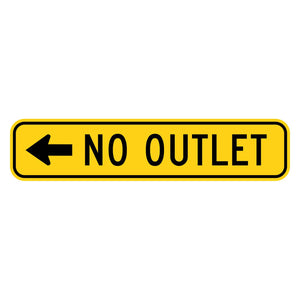

| Rectangle, horizontal | Direction, distance, or a plaque | Street names, Detour, Road Closed, distance plaques | D3-1, M4, R11-2, W16 | Rectangular Road Signs, Supplemental Plaques |
Standard Sizes by Shape
Each shape has a standard size for conventional roads and a larger size for expressways and freeways. A larger sign is always allowed. These are the sizes we ship most.
Scroll sideways to view the full table on smaller screens.
| Shape | Conventional road | Expressway and freeway | Note |
|---|---|---|---|
| Stop octagon | 30" x 30" | 36" x 36" and 48" x 48" | 24" is allowed only on low-volume private roads |
| Yield triangle | 36" x 36" x 36" | 48" and 60" | Measured along each side |
| Warning diamond | 30" x 30" | 36" x 36" and 48" x 48" | 36" on multi-lane conventional roads |
| School pentagon | 36" x 36" | 48" x 48" | Always fluorescent yellow-green |
| Railroad circle | 36" diameter | 48" diameter | |
| Speed Limit rectangle | 24" x 30" | 36" x 48" and 48" x 60" | |
| Square prohibition | 24" x 24" | 30" x 30" and 36" x 36" | Do Not Enter starts at 30" |
If you are replacing a sign, measure the old panel and match its code. Our product pages list every size we carry for each sign.
Shape and Mounting
Shape decides the hole pattern. Octagons, diamonds, and squares up to 30" are drilled on the vertical centerline for a single post. A 36" or 48" diamond is usually mounted on two posts. Vertical rectangles take one post, and wide horizontal signs such as Road Closed take two. Street name blades use cross brackets rather than through-bolts. Posts, brackets, and bolts for every shape are in our Sign Posts category.
Why Buy Road Signs from RoadSigns.com
Our signs are made in the USA on .080" aluminum, the same gauge state DOTs specify, with prismatic sheeting applied to the exact MUTCD legend, border, and color layout. Every size and sheeting combination is priced on the product page, so you can order one replacement sign or a full set without waiting on a quote. Quantity pricing applies automatically when you order the same sign in multiples. We are a registered federal supplier and ship nationwide from the factory. If the sign you need is not in this category, email us and we will make it.
Road Sign Shape FAQ
Can a Stop sign be any shape other than an octagon?
No. The octagon is reserved for Stop, which is why no other sign uses it and why a custom octagon should only carry a stop message. Our custom stop signs keep the red octagon and let you change the wording below Stop.
Why are warning signs a diamond and not a triangle?
In the United States the diamond is the warning shape and the triangle is reserved for Yield. European signs use a triangle for warnings, which is why imported or novelty signs sometimes get it wrong. For a US road, warnings are diamonds.
Does the shape change with the size?
No. A 30" and a 48" diamond are the same proportion, and every size of a sign uses the same shape. Only the legend scales. That is why matching the shape and code of an old sign, then choosing the size the road requires, gives you the correct replacement.
What shape is a custom sign?
Whatever the message calls for. Our custom builder offers square, rectangular, diamond, and octagon panels so a private road or campus sign can look like the public-road version drivers already understand.
